2023 Harley-Davidson Softail Standard  Featured

Stock #942712

548 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2023 Harley-Davidson Softail Standard . I'm in the area and you can reach me at or on my phone at .
  • Status:
    New
  • Vehicle:

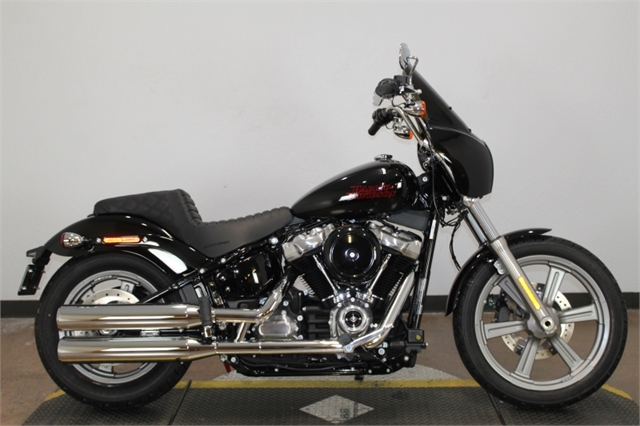

    2023 Harley-Davidson Softail Standard
  • VIN:
    1HD1BVJ21PB022663

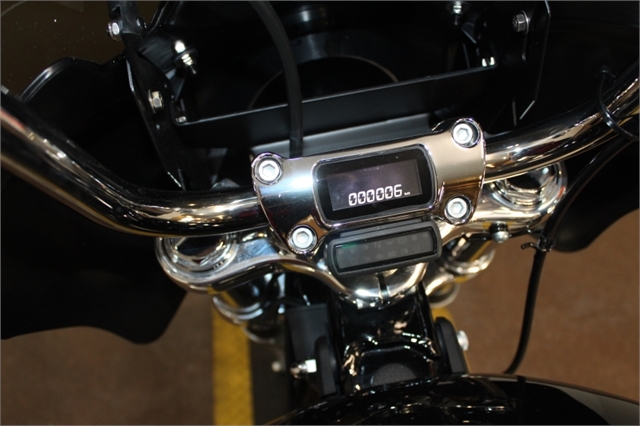

  • Mileage:
    6 miles
  • Color:
    Vivid Black
  • Stock Number:
    942712
  • Title:
    Clear
  • Location:
    Eagle's Nest Harley-Davidson
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

CONVENIENCE

  • Engine Immobilizer Brand:
    Digitally Encoded Security System™ (DESS)

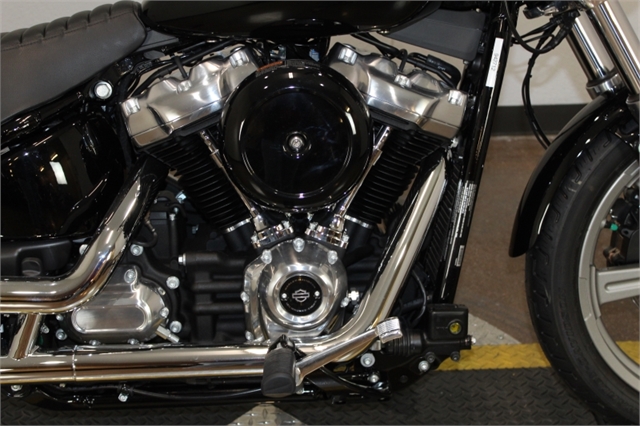

ENGINE

  • Bore (in):
    3.94
  • Bore (mm):
    100
  • CAN Liters Per Kilometer (Combined):
    5
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10
  • Cooling:
    Oil
  • Cylinders:
    2
  • Displacement (cc):
    1745
  • Displacement (ci):
    107
  • Engine Brand Name:
    Milwaukee-Eight™ 107
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    4.37
  • Stroke (mm):
    111.1
  • Torque (Ft Lbs):
    110
  • Torque (Nm):
    149
  • Torque RPM:
    3000
  • US Miles Per Gallon (Combined):
    47
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Belt Guard:
    Yes
  • Body Material:
    Steel
  • Foot Peg Location:
    Driver
  • Frame:
    Steel
  • Side Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

LIGHTS

  • Type:
    LED

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    26.8
  • Seat Height (mm):
    680
  • Seat Location:
    Driver
  • Seat Material:
    Leather
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Suspension Size (in):
    1.9
  • Front Suspension Size (mm):
    49
  • Front Suspension Type:
    Telescopic Fork
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Size (in):
    1.7
  • Rear Suspension Size (mm):
    43
  • Rear Suspension Type:
    Twin Sided Swing Arm

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    291
  • Dry Weight (lbs):
    642
  • Engine Displacement to Weight (cc):
    2.72
  • Fuel Capacity (gal):
    3.5
  • Fuel Capacity (l):
    13.2
  • Ground Clearance (in):
    4.9
  • Ground Clearance (mm):
    125
  • GVWR (kgs):
    526
  • GVWR (lbs):
    1160
  • Height (in):
    45.7
  • Height (mm):
    1160
  • Length (ft):
    7.61
  • Length (ft/ft):
    7
  • Length (ft/in):
    7.3
  • Length (in):
    91.3
  • Length (mm):
    2320
  • Payload Capacity (kgs):
    229
  • Payload Capacity (lbs):
    505
  • Wet Weight (kg):
    297
  • Wet Weight (lbs):
    655
  • Wheelbase (in):
    64.2
  • Wheelbase (mm):
    1630
  • Width (in):
    34.1
  • Width (mm):
    865

TRANSMISSION

  • Gear Ratio (1):
    9.311
  • Gear Ratio (2):
    6.454
  • Gear Ratio (3):
    4.793
  • Gear Ratio (4):
    3.882
  • Gear Ratio (5):
    3.307
  • Gear Ratio (6):
    2.79
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Brand:
    Six-Speed Cruise Drive®
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Dunlop® Harley Davidson Series 100/90 R19 57H
  • Front Tire Aspect Ratio:
    90
  • Front Tire Speed Rating:
    H
  • Front Tire Width:
    100
  • Front Wheel Diameter:
    19
  • Rear Tire (Full Spec):
    Dunlop® Harley Davidson Series 150/80 R16 77H
  • Rear Tire Aspect Ratio:
    80
  • Rear Tire Speed Rating:
    H
  • Rear Tire Width:
    150
  • Rear Wheel Diameter:
    16
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum
